Differential Equations Examples

Math 243 - Fall 2025

Slope Fields

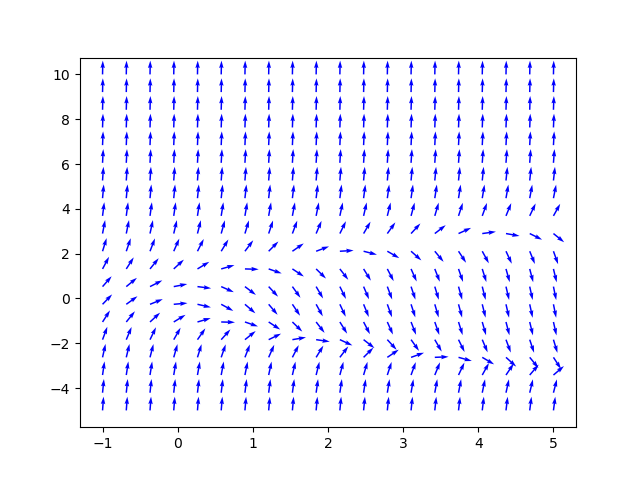

Figure: Slope field example (Octave, Python, Sage)

Euler’s Method

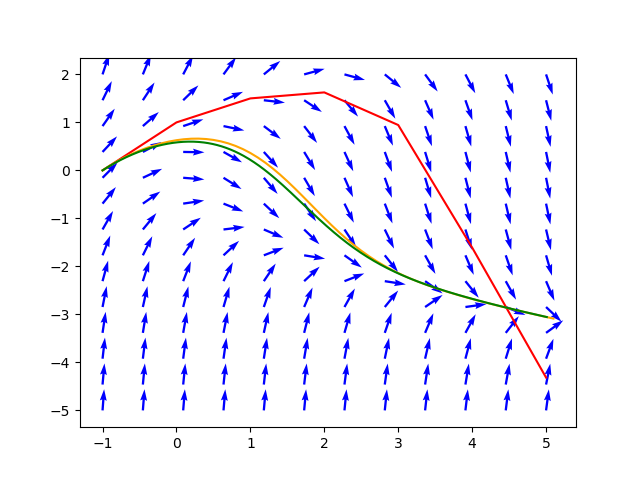

Figure: Euler’s method (Python)

Phase Planes

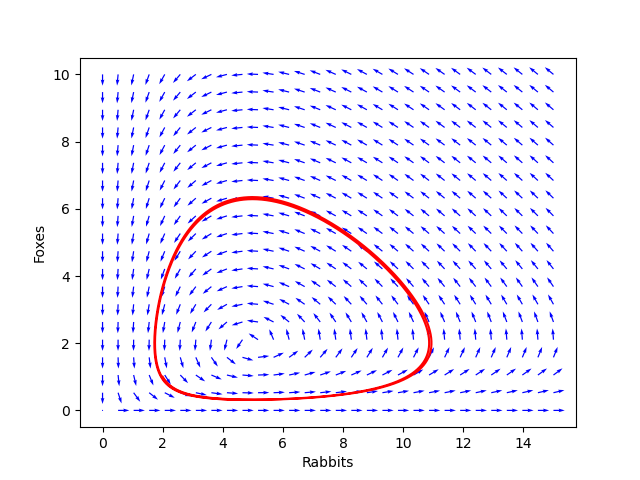

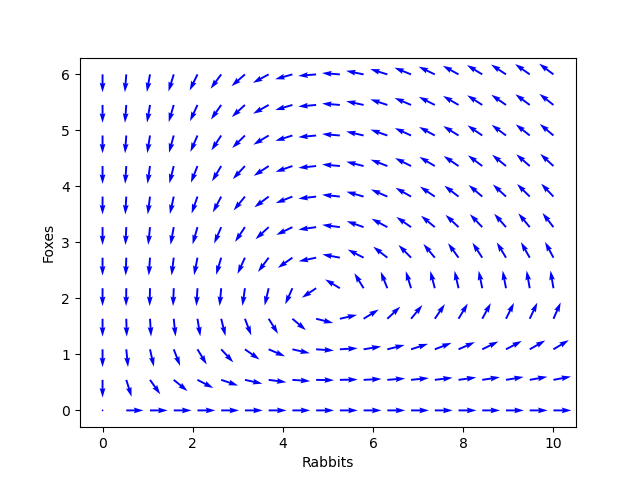

Figure: Example phase plane (Python, Octave)

Euler’s Method for Systems

Figure: Two-dimensional Euler’s method example (Python)

Finding Exact Eigenvectors and Eigenvalues

from sympy import *

A = Matrix([[3,5],[2,6]])
'''
The .eigenvects() method returns a list of tuples containing:
1. an eigenvalue,
2. its multiplicity (how many times it is a root), and
3. a list of corresponding eigenvectors.
'''
pretty_print(A.eigenvects())

Figure: Finding exact eigenpairs. (Octave, Python)

Finding Solutions of Linear Homogeneous Systems

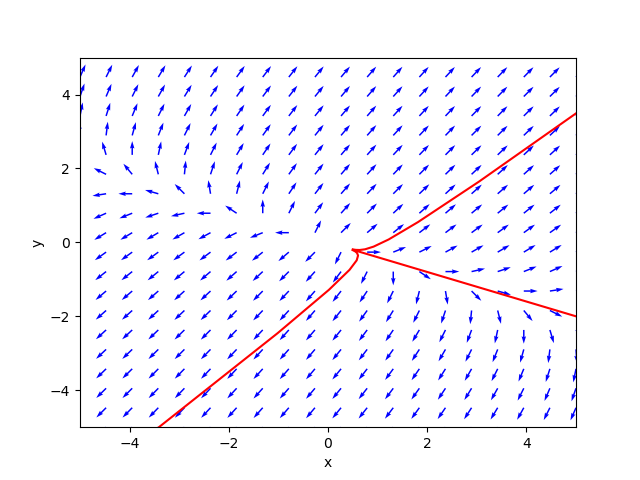

Figure: Solution curves for linear systems (Python)
